Standard Capacity Counterbalance Valve with 240L CBG Pilot Ratio

Counterbalance valves with pilot assist are meant to control an overrunning load. The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the relief valve at a rate determined by the pilot ratio.

Highlights

√ FREE sample in 5 days
√ 100% test before finished
√ 2 Years Warranty
√ 15 Davs/On Time Delivery
√ No leakage
√ Wide Range Specification
√ Customized/ODM/OEM accepted
√ Quick Response Within 12 hours
√ Small MOQ Accepted
√ LOGO customized
  • MGF series

  • Mongor Fluid

Availability:
Quantity:

Basic Specifications

Product Model Standard Capacity Counterbalance Valve
Brand
Mongor Fluid
Cavity T-17A
Pilot Ratio

3:1

Maximum Recommended Load Pressure at Maximum Setting 280bar
Maximum Setting 350bar
Factory Pressure Settings Established at
2 in³/min.
Maximum Valve Leakage at Reseat 5 drops/min.
Adjustment - No. of CCW Turns from Min. to Max. Setting
3.75
Operating Characteristic Standard
Reseat >85% of setting
Model Weight

0.62kgs

Customized Accepted
Standard ISO9001



What we offer


hydraulic components supplier in China

Valves for Hydraulic System

Hydraulic Ball Valves


hydraulic test point hose Hydraulic Test Hose
hydraulic componts supplier

Hydraulic Test Point Fittings







Product Description

Details & Advantages

Models

Models

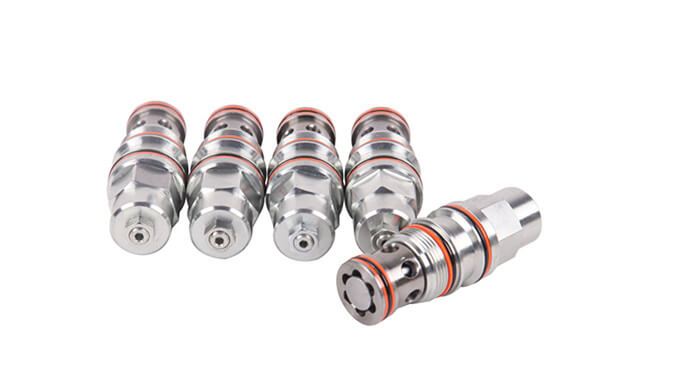

Counterbalance valves with pilot assist details

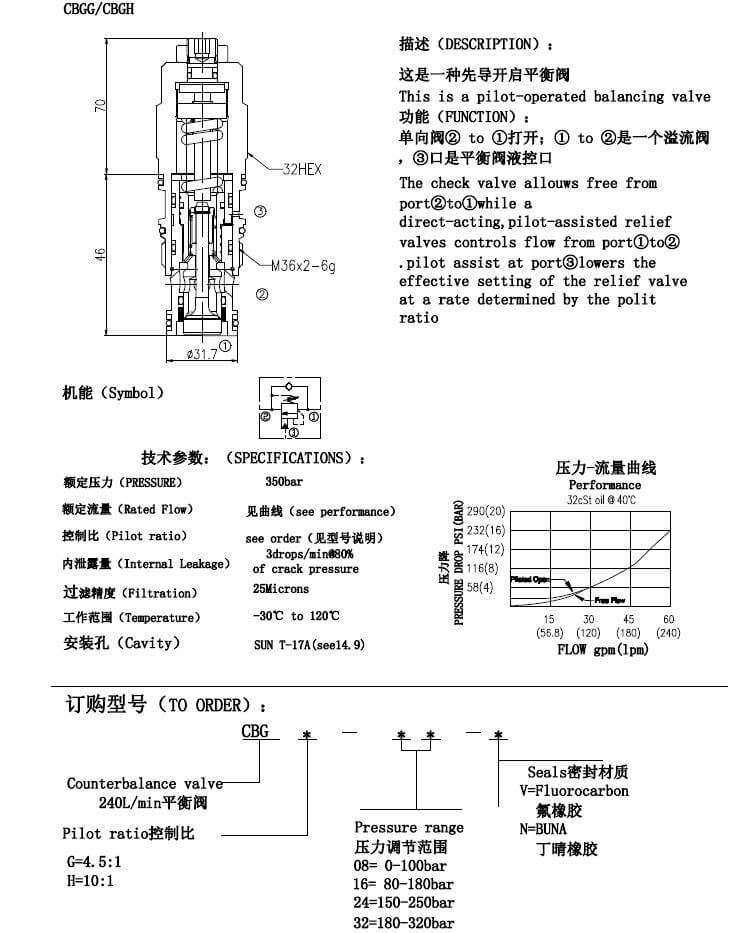

Counterbalance valves with pilot assist specification






Manufactuing


Factory of Mongor Fluid


With over 10 years experience&ISO 9001 system&SGS management, Mongor Fluid offer high performance hydraulic valves.


Mongor Fluid factory

New Factory

hydraulic ball valves manufacturer

Manufacturing Workshop 1

hydraulic valves workshop

 Manufacturing Workshop 2


Automatic assembly line

Automatic Assembly Line

hydraulic valves China manufacturer

Bulk Goods

hydraulic valves supplier

Sturdy Packaging



What Guarantees Our Quality


hydraulic test couplings China manufacturer Ikin workshop

over 100pcs high precision machine

workers of Ikin Fluid

technic workers with over 5 years experience

SGS and ISO certificate for IKIN

ISO and SGS system management


structure of ball valves

mature design structure, stable and long life

fully-automated-assembly-equipment-for-ikin-test-point

Fully automated assembly equipment, efficient

bulk hydraulic valves

100% leakage test before finished



FAQ

FAQs

  • How to exchange your ball valves models with other brands such as Parker?

    Created with Sketch.
    形状 Created with Sketch.
    Contact us, we will exchange it for you.
    Reply will be in 12 hours.
  • Delivery Time

    Created with Sketch.
    形状 Created with Sketch.
    10-15 working days for bulk cargo.
  • Sample

    Created with Sketch.
    形状 Created with Sketch.
    We will apply free sample for you, usually it will be sent in 1 week.
  • Warranty Time

    Created with Sketch.
    形状 Created with Sketch.
    2 years
  • How to guarantee quality?

    Created with Sketch.
    形状 Created with Sketch.
    Semi-inspection and final 100% inspection is well controlled.
  • Loading Port

    Created with Sketch.
    形状 Created with Sketch.
    The nearest is Shanghai and the next one is Ningbo, China.
  • MOQ

    Created with Sketch.
    形状 Created with Sketch.
    50pcs
