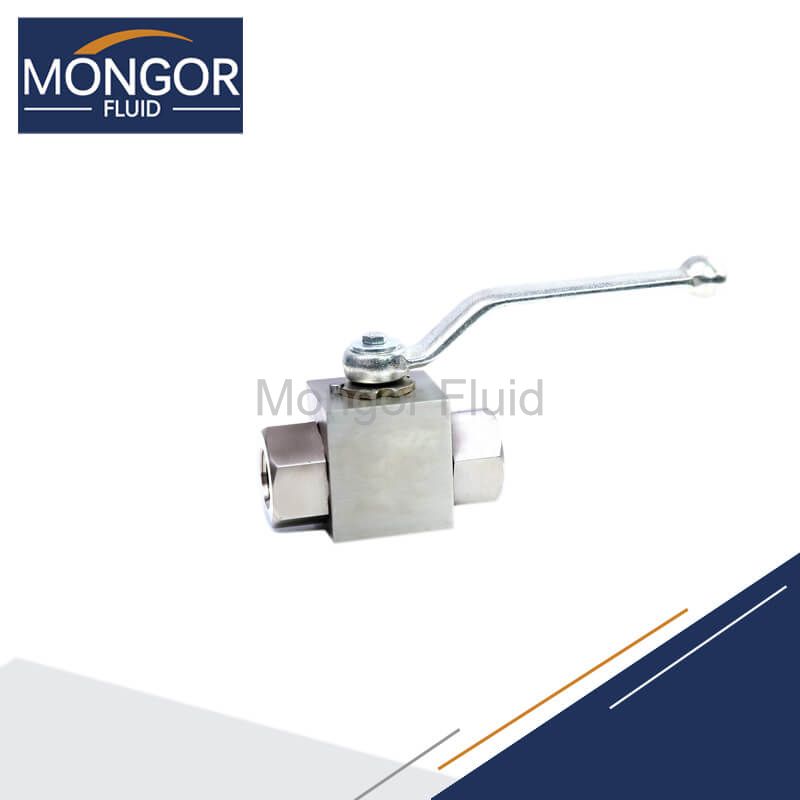

Internal Thread Two-way Ball Valves

In a hydraulic system, the ball valve plays an important role in regulating the rising and falling of pressure level which could lead to bursting of pipes or leakage of hydraulic fluids.

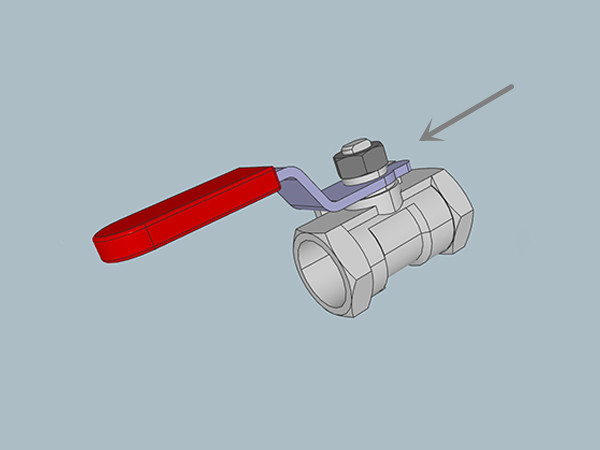

2-way ball valve is one of the most common valves on the market. It has 2 ports, an inlet and an outlet, and a ball with a bore in it. They are operated by a manual hand lever to turn the ball 90 degrees, which is why they are often called quarter turn ball valves or shut off valves.

Highlights

√ FREE sample in 2 days(FREE shipping)
√ 100% test before finished
√ 3 Years Warranty
√ 15 Davs/On Time Delivery
√ Cone Seal Design, no leakage
√ Wide Range Standard Specification
√ Customized/ODM/OEM accepted
√ Quick Response Within 12 hours
√ Small MOQ Accepted
√ LOGO customized

Model:
MGF series
Brand:
Mongor Fluid

Availability:

Quantity:



Inquire Add to Basket

Basic Specifications

Brand	Mongor Fluid
Manufacturer Model Series	MGF series
Thread Type	Internal/External threads
PN	20Mpa~32Mpa~40Mpa~50Mpa~100PMpa
Control Mandrel Style	(1) Aluminum Straight (2) Aluminum Crank (3) Cast Zinc Straight (4) Cast Zinc Crank (5) Steel Straight (6) Steel Crank (7) Without Handle
Body and Connector Materials	(1) stainless steel (2) carbon steel
Ball Material	(1) stainless steel (2) carbon steel
Seal Material	(1) NBR (2) FPM (3) EPDM
Operating Temperature	(1) -25~+100℃ (2) -30~+170℃
Surface Treatment	(1) chrome (2) galvanized (3) Phosphating (4) Electroplating yellow zinc
Logo	Neutral or customized

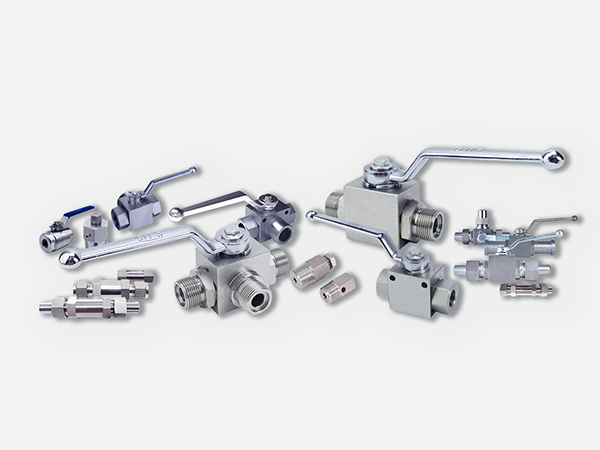

What we offer

Valves for Hydraulic System

Hydraulic Ball Valves

Hydraulic Test Hose

Hydraulic Test Point Fittings

Product Description

Details & Advantages

Excellent Raw Material&Traceable Quality Control

Carbon steel or stainless steel are purchased from verified suppliers. We check the quality certificate of raw materials for each batch, and confirm that the materials or packaging are marked with signs such as brand name, batch number, status, specification, quantity and manufacturer code to ensure the traceability of materials.
Irregularly we test these materials, to ensure corrosion resistance, oxidation resistance, heat resistance, high strength and high toughness.

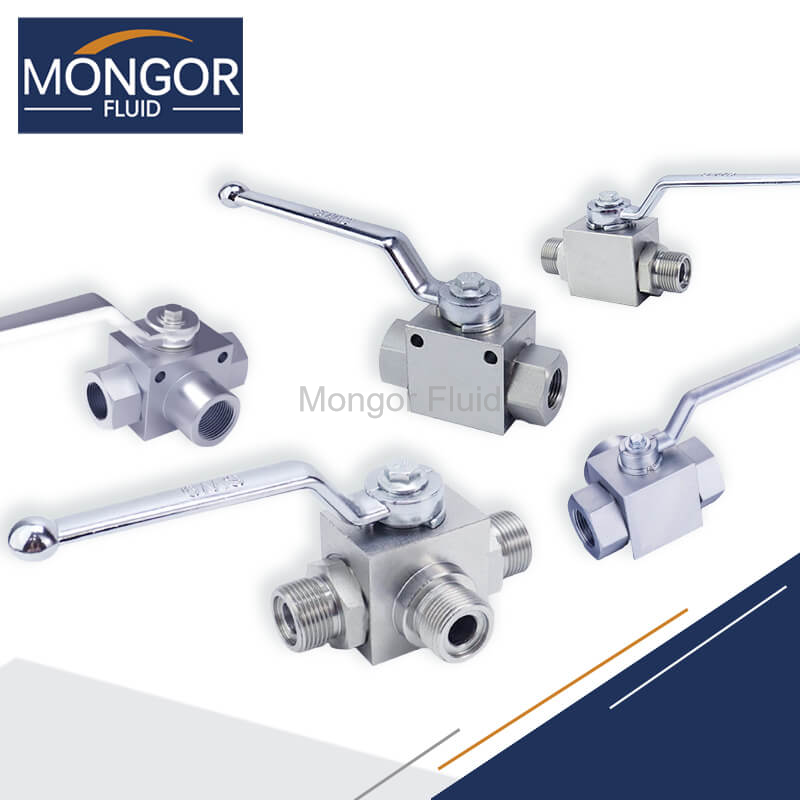

More Specifications Available

Hydraulic industry usually used high-pressure ball valves. Mature and stable structural design ensure efficient operation and reducing energy consumption.
And we provide customized solutions, such as special materials, coatings, valve configurations, different usage scenarios, etc., to meet specific customer requirements.
Tight Connection

The handle and valve body are tightly connected, and the valve body has double-layer spring gaskets to ensure more safer without falling off, reducing maintenance, thereby reducing downtime and maintenance costs for your customers.
Fastening Thread

Tighten the threads. Bolt connection is adopted to ensure the reliability and stability of the system, even if it is used repeatedly, it will not affect the service life.
The thread is complete and clear, deepened, uniform force, smooth rotation, firm connection, not easy to slip. Especially, the interface wall is thickened, pressure-resistant, durable and explosion-proof.

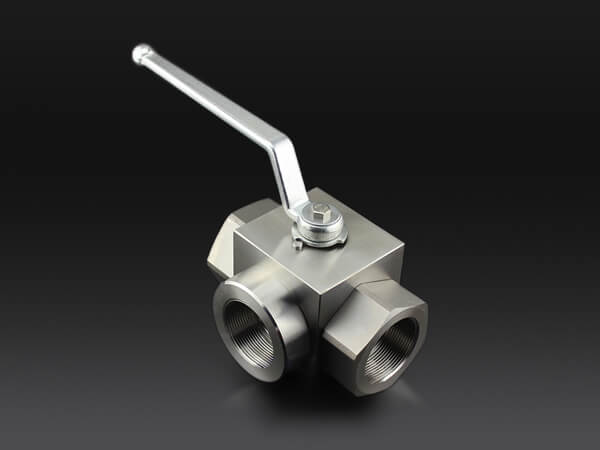

Appearance

The exterior is smooth and polished. Chamfering treatment, safe use, prevent bumps.
Mature Structural Design

We have mature structural design, high-quality materials and precise manufacturing process, so our ball valves have the advantages of excellent durability and low maintenance cost.
Technical Team and After-sales Support

We provide mature technical team design and after-sales support.
All of our technicians graduated from formal mechanical design undergraduate majors, and all have more than 5 years of practical experience in the hydraulic industry.
We can clearly understand the customer's requirements and concerns for the hydraulic system, design and manufacture products from the perspective of actual use, thereby reducing on-site maintenance.

Models

CAD drawings of hydraulic ball valves_副本

Models	M	G	Size(mm)
Models	M	G	B	H	h	h1	L	L2	S	L0
HMFG-J06N	M16*1.5	1/4"	32	34	17	68	67	14	24	120
HMFG-J10N	M18*1.5	3/8"	34	40	18	72	78	14	27	120
HMFG-J15N	M22*1.5	1/2"	34	40	19	87	86	16	30	120
HMFG-J20N	M27*2	3/4"	50	57	25	96	108	18	41	160
HMFG-J25N	M33*2	1"	55	64	30	116	116	20	50	160
HMFG-J32N	M42*2	1 1/4"	70	75	38	141	136	22	60	200
HMFG-J40N	M48*2	1 1/2"	75	98	45	165	148	24	75	250
HMFG-J50N	M64*2	2"	90	110	52	180	180	26	85	300

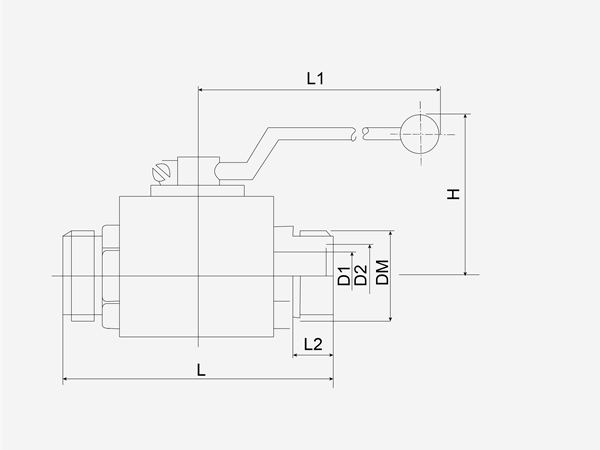

CAD drawings of fluid ball valves_副本

Models	M	Size(mm)
Models	M	D1	D2	L	L1	L2	H
HMFG-J6W	M16*1.5	6	10	70	121	12	55
HMFG-J8W	M22*1.5	8	14	70	121	14	58
HMFG-J10W	M27*1.5	10	20	90	127	16	58
HMFG-J15W	M30*1.5	15	22	95	127	18	68
HMFG-J20W	M36*2	20	30	112	184	18	72
HMFG-J25W	M42*2	24	35	122	184	20	86
HMFG-J32W	M52*2	30	40	145	215	22	103
HMFG-J40W	M64*2	38	500	156	215	24	120
HMFG-J50W	M72*2	48	60	189	229	26	128

Models	L0	E	F	L	L1	L2	L3	L4	Φ	D
HMFG-J10BN	160	38	54	81	45	56	11	10	Φ9	10
HMFG-J15B	160	42	60	92	52	60	6	16	Φ9	15
HMFG-J20B	180	50	70	108	60	70	7.5	17	Φ11	20
HMFG--J25B	220	55	77	114	65	80	11	17.5	Φ114	25
HMFG--J32B	250	75	100	152	90	120	19	16	Φ13	32
HMFG--J40B	300	90	122	185	110	150	23	20	Φ17	40
HMFG--J50B	350	112	150	220	136	136	46	46	Φ21	50

ball check valves specification_副本

Manufactuing

Factory of Mongor Fluid

With over 10 years experience&ISO 9001 system&SGS management, Mongor Fluid offer high performance hydraulic valves.

Mongor Fluid factory

New Factory

hydraulic ball valves manufacturer

Manufacturing Workshop 1

hydraulic valves workshop

Manufacturing Workshop 2

Automatic assembly line

Automatic Assembly Line

hydraulic valves China manufacturer

Bulk Goods

hydraulic valves supplier

Sturdy Packaging

What Guarantees Our Quality

hydraulic test couplings China manufacturer Ikin workshop

over 100pcs high precision machine

technic workers with over 5 years experience

ISO and SGS system management

mature design structure, stable and long life

fully-automated-assembly-equipment-for-ikin-test-point

Fully automated assembly equipment, efficient

100% leakage test before finished

FAQ

FAQs

How to exchange your ball valves models with other brands such as Parker？

Contact us, we will exchange it for you.

Reply will be in 12 hours.
Delivery Time

10-15 working days for bulk cargo.
Sample

We will apply free sample for you, usually it will be sent in 1 week.
Warranty Time

2 years
How to guarantee quality？

Semi-inspection and final 100% inspection is well controlled.
Loading Port

The nearest is Shanghai and the next one is Ningbo, China.
MOQ

50pcs
