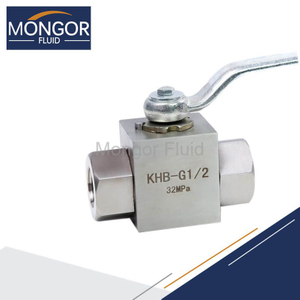

Two-way Ball Valves

In a hydraulic system, the ball valve plays an important role in regulating the rising and falling of pressure level which could lead to bursting of pipes or leakage of hydraulic fluids.
2-way ball valve is one of the most common valves on the market. It has 2 ports, an inlet and an outlet, and a ball with a bore in it. They are operated by a manual hand lever to turn the ball 90 degrees, which is why they are often called quarter turn ball valves or shut off valves.

Model:
MGF series
Brand:
Mongor Fluid
Manufacturer Model Series:
MGF series
Thread Type:
Internal/External threads
PN:
20Mpa~32Mpa~40Mpa~50Mpa~100PMpa
Control Mandrel Style:
(1) Aluminum Straight (2) Aluminum Crank (3) Cast Zinc Straight (4) Cast Zinc Crank (5) Steel Straight (6) Steel Crank (7) Without Handle
Body and Connector Materials:
(1) stainless steel (2) carbon steel
Ball Material:
(1) stainless steel (2) carbon steel
Seal Material:
(1) NBR (2) FPM (3) EPDM
Operating Temperature:
(1) -25~+100℃ (2) -30~+170℃
Surface Treatment:
(1) chrome (2) galvanized (3) Phosphating (4) Electroplating yellow zinc
Logo:
Neutral or customized

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

1. What we offer:

hydraulic valves supplier China

hydraulic valves manufacturer in China

we offer test hose&couplings just as minimess

2. Details&Advantages:

*************************

**********************

*************************

**********************

****************

***********************

**********************************

************************************

**************************************

*************************************

application of Mongor hyraulic test point 2

3. Workshop:

**********

**************

*****************

一排3张图

2排

图片已经准备好

4. Models:

CAD drawings of hydraulic ball valves_副本

Models	M	G	Size(mm)
Models	M	G	B	H	h	h1	L	L2	S	L0
HMFG-J06N	M16*1.5	1/4"	32	34	17	68	67	14	24	120
HMFG-J10N	M18*1.5	3/8"	34	40	18	72	78	14	27	120
HMFG-J15N	M22*1.5	1/2"	34	40	19	87	86	16	30	120
HMFG-J20N	M27*2	3/4"	50	57	25	96	108	18	41	160
HMFG-J25N	M33*2	1"	55	64	30	116	116	20	50	160
HMFG-J32N	M42*2	1 1/4"	70	75	38	141	136	22	60	200
HMFG-J40N	M48*2	1 1/2"	75	98	45	165	148	24	75	250
HMFG-J50N	M64*2	2"	90	110	52	180	180	26	85	300

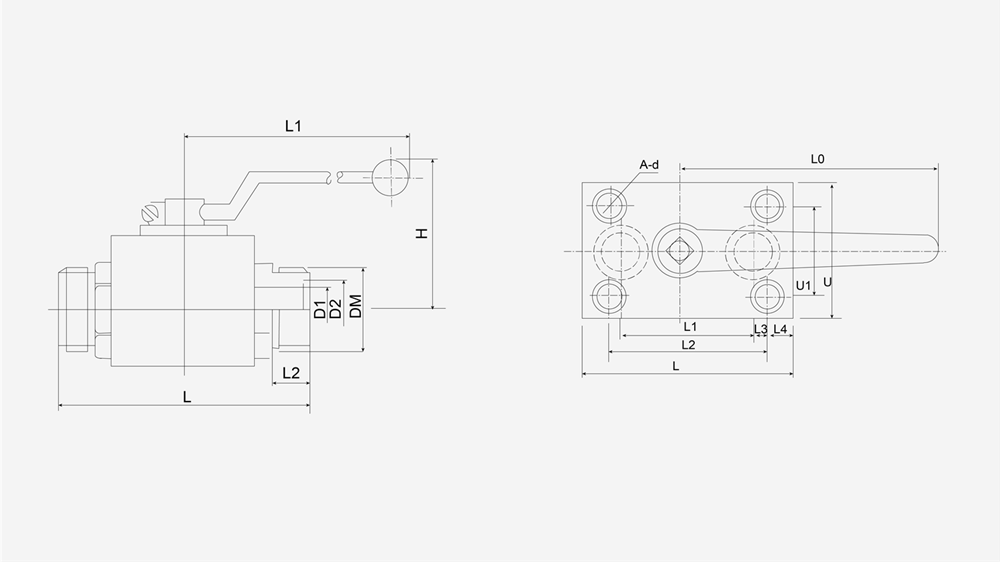

CAD drawings of fluid ball valves_副本

Models	M	Size(mm)
Models	M	D1	D2	L	L1	L2	H
HMFG-J6W	M16*1.5	6	10	70	121	12	55
HMFG-J8W	M22*1.5	8	14	70	121	14	58
HMFG-J10W	M27*1.5	10	20	90	127	16	58
HMFG-J15W	M30*1.5	15	22	95	127	18	68
HMFG-J20W	M36*2	20	30	112	184	18	72
HMFG-J25W	M42*2	24	35	122	184	20	86
HMFG-J32W	M52*2	30	40	145	215	22	103
HMFG-J40W	M64*2	38	500	156	215	24	120
HMFG-J50W	M72*2	48	60	189	229	26	128

Models	L0	E	F	L	L1	L2	L3	L4	Φ	D
HMFG-J10BN	160	38	54	81	45	56	11	10	Φ9	10
HMFG-J15B	160	42	60	92	52	60	6	16	Φ9	15
HMFG-J20B	180	50	70	108	60	70	7.5	17	Φ11	20
HMFG--J25B	220	55	77	114	65	80	11	17.5	Φ114	25
HMFG--J32B	250	75	100	152	90	120	19	16	Φ13	32
HMFG--J40B	300	90	122	185	110	150	23	20	Φ17	40
HMFG--J50B	350	112	150	220	136	136	46	46	Φ21	50
