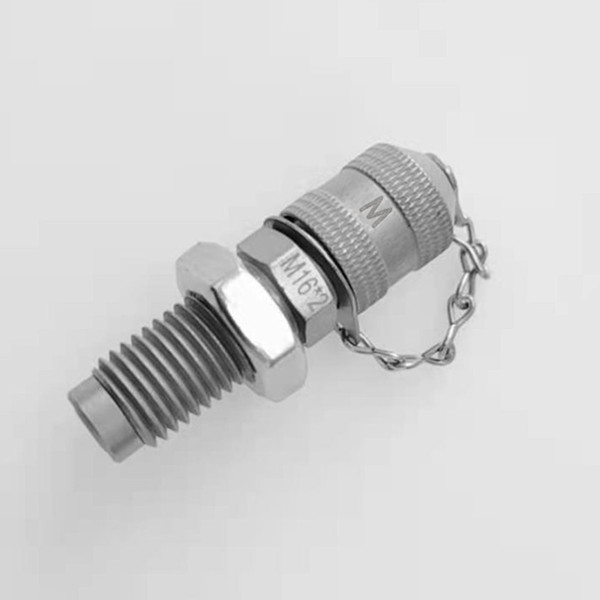

Hydraulic Test Point with Bulkhead Connection

(1) All our models are universal in all hydraulic system.
(2)All models such as Minimess, Spradow, Parker, Stauff test point etc, can be exchanged here.
(3) China factory, free leakage, 100% inspection before delivery.
(4) Free sample in 2 days.
(5) Low price and low MOQ 100pcs.
  • Bulkhead Connection

  • Mongor Fluid

  • Stainless Steel or Carbon Steel

  • 630bar

  • (1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request

  • Zinc, Zinc Nickel(CrVI-free)

  • Neutral or customized

Availability:
Quantity:

Product Description

1. Pictures:

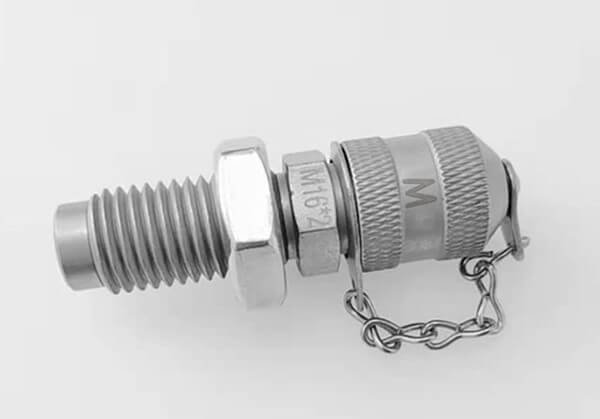

picture of hydraulic test point with bulkhead



2. Applications:



      Hydraulic test point enables quick and easy connection to pressure gauges or test hoses.

      Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.

      Below is our test point's application scenarios.


application of Mongor hyraulic test point 1



application of Mongor hyraulic test point 2


3. Scope of use:



      Our hydraulic test point is universal for all hydraulic measuring system.

      All models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.

      Contact us, we'll offer models you need.


4. Details:



     Delivery Time:

      10-15 working days for bulk cargo.

     Sample:

      Free, will be sent in 2 days.

     Warranty Time:

      3 years

     How to guarantee quality:

     10 years experience, 100% inspection before package.

     Loading Port:

      The nearest is Shanghai and the next one is Ningbo, China.

     MOQ:

      100pcs


5. Specification:

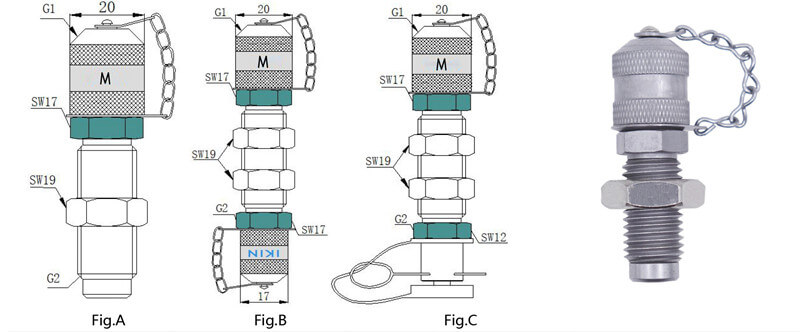

specification of hydraulic test point with bulkhead 1_副本

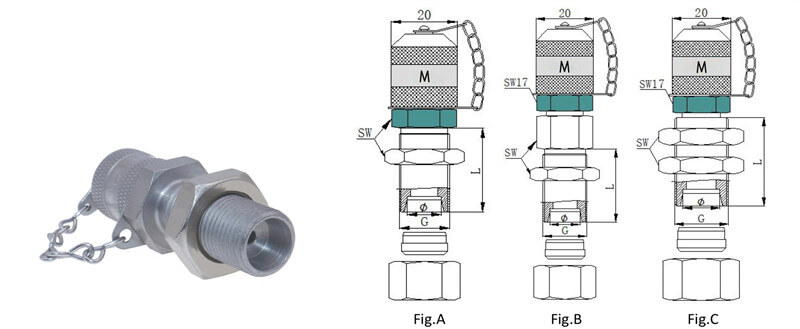

specification of hydraulic test point with bulkhead 2_副本

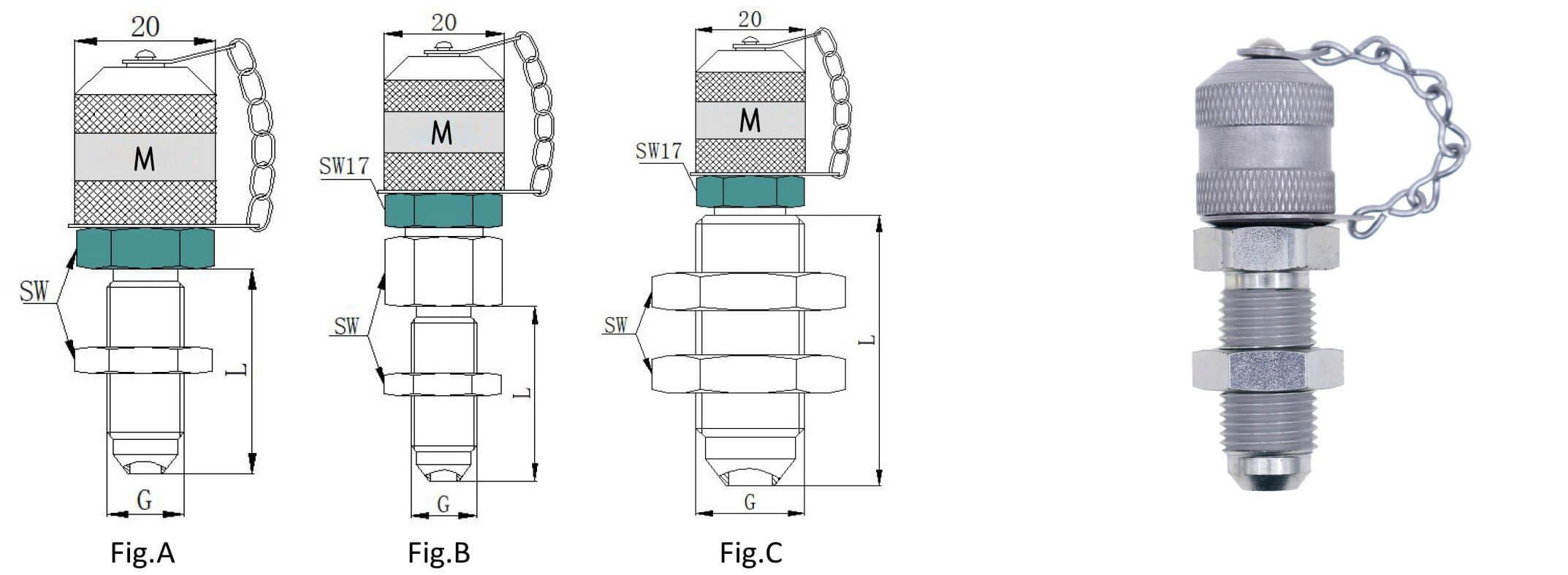

specification of hydraulic test point with bulkhead 3_副本

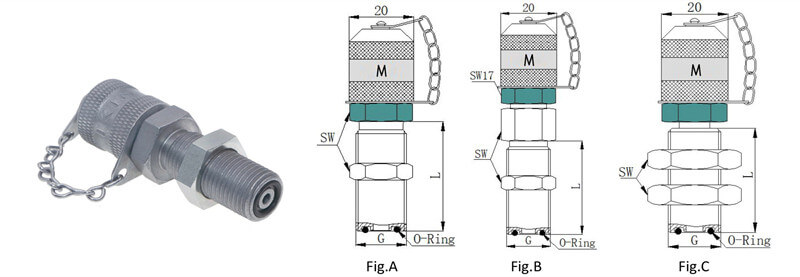

specification of hydraulic test point with bulkhead 4_副本

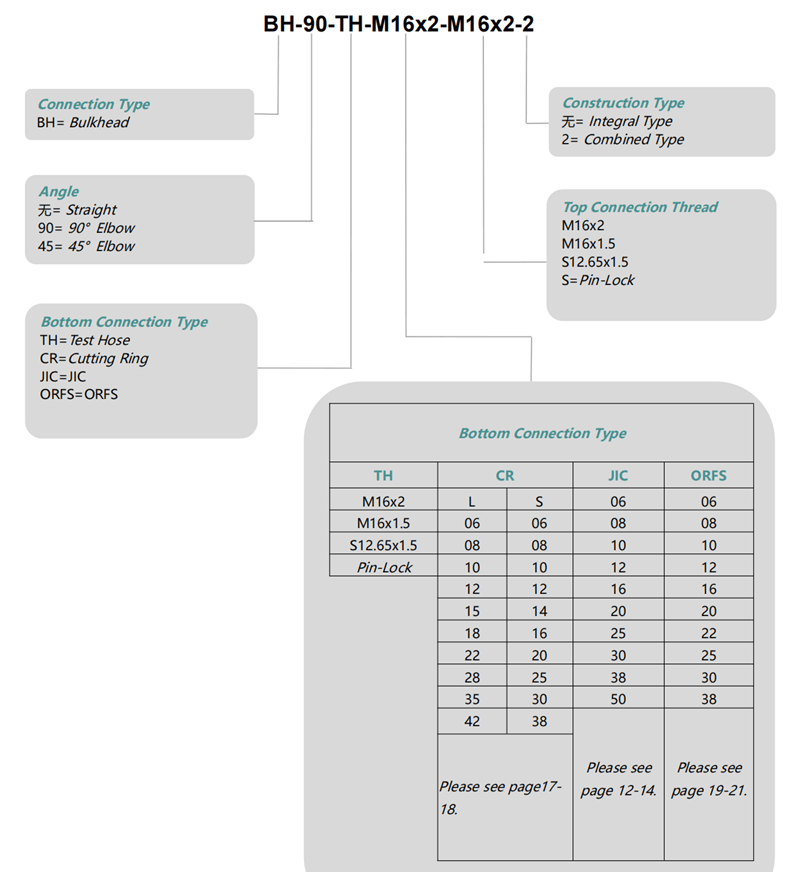

specification of hydraulic test point with bulkhead 5



Connection Type BH= Bulkhead
Angle 无= Straight
90= 90° Elbow
45= 45° Elbow
Bottom Connection Type TH= Test Hose
CR= Cutting Ring
JIC
ORFS
Construction Type 无= Integral Type
2= Combined Type
Top Connection Thread M16x2
M16x1.5
S12.65x1.5
S=Pin-Lock
TH CR JIC ORFS
M16x2 L series S series 6 6
M16x1.5 6 6 8 8
S12.65x1.5 8 8 10 10
Pin-Lock 10 10 12 12

12 12 16 16

15 14 20 20

18 16 25 22

22 20 30 25

28 25 38 30

35 30 50 38

42 38



6. Workshop



factory of hydraulic test point


workshop of Mongor hydraulic test point
