Hydraulic Test Point with Tube Connection

(1) All our models are universal in all hydraulic system.
(2)All models such as Minimess, Spradow, Parker, Stauff test point etc, can be exchanged here.
(3) China factory, free leakage, 100% inspection before delivery.
(4) Free sample in 2 days.
(5) Low price and low MOQ 100pcs.
  • Tube Connection

  • Mongor Fluid

  • Stainless Steel or Carbon Steel

  • 630bar

  • (1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request

  • Zinc, Zinc Nickel(CrVI-free)

  • Neutral or customized

Availability:
Quantity:

Product Description

1. Pictures:


picture of Hydraulic Test Point with tube connection



2. Applications:



      Hydraulic test point enables quick and easy connection to pressure gauges or test hoses.

      Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.

      Below is our test point's application scenarios.


application of Mongor hyraulic test point 1



application of Mongor hyraulic test point 2


3. Scope of use:



      Our hydraulic test point is universal for all hydraulic measuring system.

      All models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.

      Contact us, we'll offer models you need.


4. Details:



     Delivery Time:

      10-15 working days for bulk cargo.

     Sample:

      Free, will be sent in 2 days.

     Warranty Time:

      3 years

     How to guarantee quality:

     10 years experience, 100% inspection before package.

     Loading Port:

      The nearest is Shanghai and the next one is Ningbo, China.

     MOQ:

      100pcs


5. Specification:

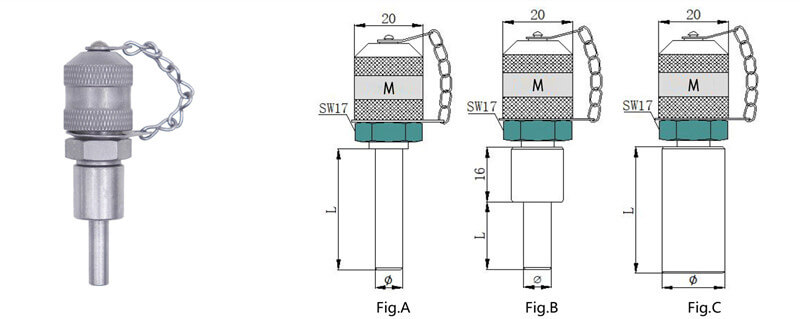

specification of hydraulic test point with tube

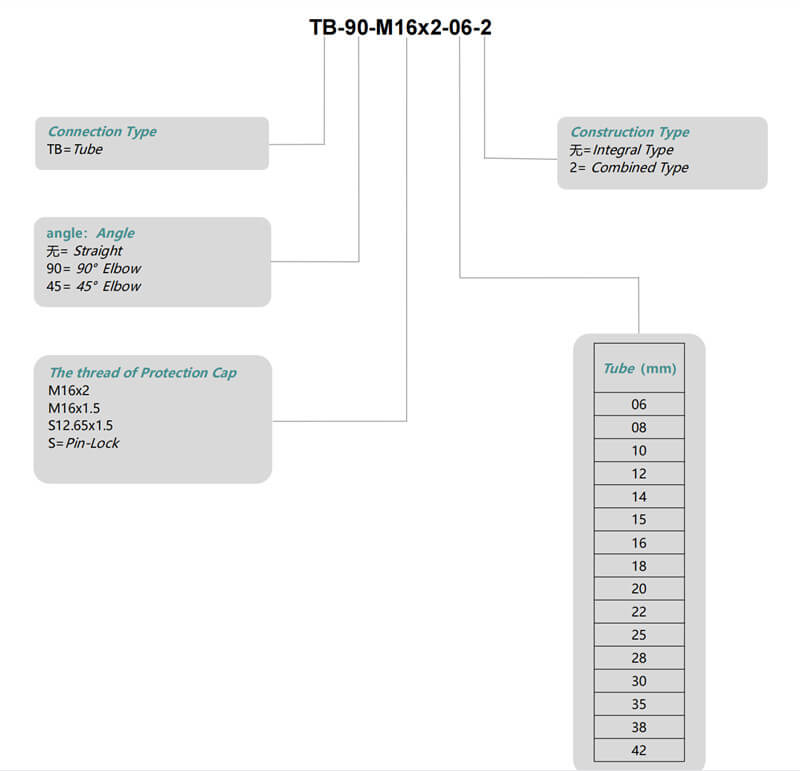

specification of hydraulic test point with tube 2



Connection Type TB= Tube
Angle 无= Straight
90= 90° Elbow
45= 45° Elbow
The thread of Protection Cap M16x2
M16x1.5
S12.65x1.5
S=Pin-Lock
Construction Type 无= Integral Type
2= Combined Type
Tube 6
8
10
12
14
15
16
18
20
22
25
28
30
35
38
42

6. Workshop



factory of hydraulic test point


workshop of Mongor hydraulic test point
