Cutting Ring
Mongor Fluid
Stainless Steel or Carbon Steel
630bar
(1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request
Zinc, Zinc Nickel(CrVI-free)
Neutral or customized
| Quantity: | |
|---|---|
Product Description

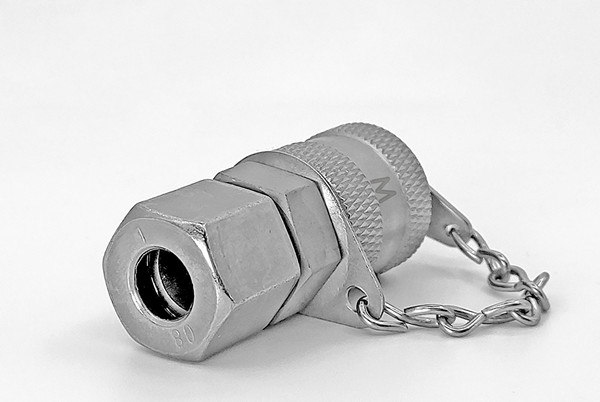

Hydraulic test point enables quick and easy connection to pressure gauges or test hoses.
Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.
Below is our test point's application scenarios.
Our hydraulic test point is universal for all hydraulic measuring system.
All models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.
Contact us, we'll offer models you need.
10-15 working days for bulk cargo.
Free, will be sent in 2 days.
3 years
10 years experience, 100% inspection before package.
The nearest is Shanghai and the next one is Ningbo, China.
100pcs

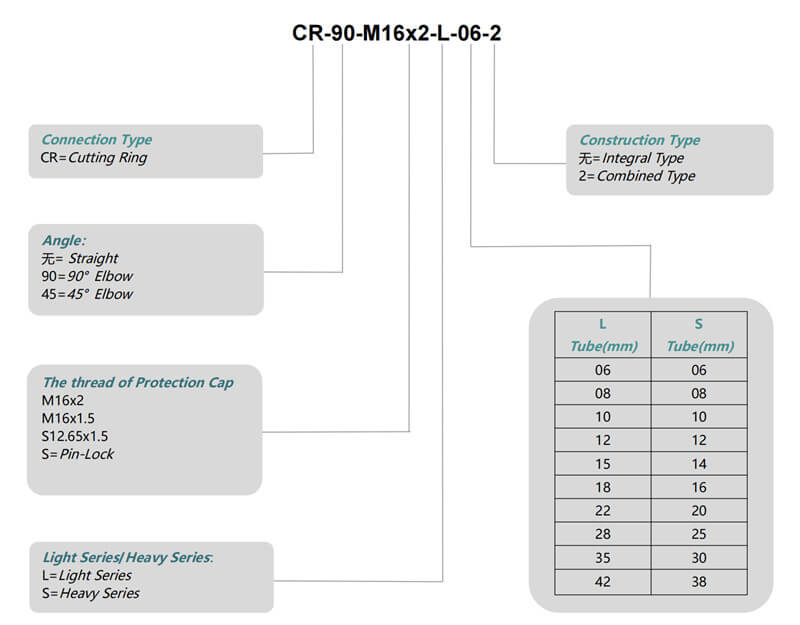

| Connection Type | CR= Cutting Ring |
| Angle | 无= Straight |
| 90= 90° Elbow | |
| 45= 45° Elbow | |
| The thread of Protection Cap | M16x2 |
| M16x1.5 | |
| S12.65x1.5 | |
| S=Pin-Lock | |
| Series | L= Light Series |
| S= Heavy Series | |
| Construction Type | 无= Integral Type |
| 2= Combined Type | |
| L Tube(mm) | 6 |
| 8 | |
| 10 | |
| 12 | |
| 15 | |
| 18 | |
| 22 | |
| 28 | |
| 35 | |
| 42 | |
| S Tube(mm) | 6 |
| 8 | |
| 10 | |
| 12 | |
| 14 | |
| 16 | |
| 20 | |
| 25 | |
| 30 | |
| 38 |
