Hydraulic Test Point with JIC 37°

(1) All our models are universal in all hydraulic system.
(2)All models such as Minimess, Spradow, Parker, Stauff test point etc, can be exchanged here.
(3) China factory, free leakage, 100% inspection before delivery.
(4) Free sample in 2 days.
(5) Low price and low MOQ 100pcs.
  • JIC 37° Thread Connection

  • Mongor Fluid

  • Stainless Steel or Carbon Steel

  • 630bar

  • (1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request

  • Zinc, Zinc Nickel(CrVI-free)

  • Neutral or customized

Availability:
Quantity:

Product Description

1. Pictures:

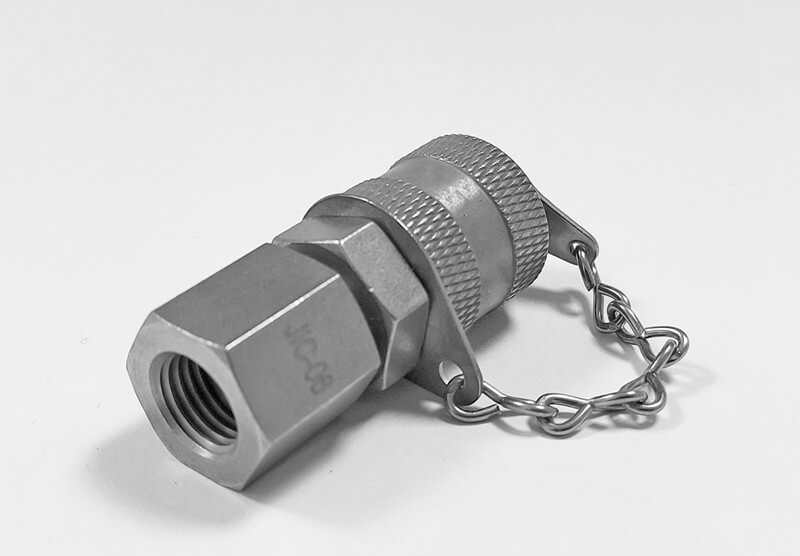

hydraulic test point of JIC 37°



2. Applications:



      Hydraulic test point enables quick and easy connection to pressure gauges or test hoses.

      Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.

      Below is our test point's application scenarios.


application of Mongor hyraulic test point 1



application of Mongor hyraulic test point 2


3. Scope of use:



      Our hydraulic test point is universal for all hydraulic measuring system.

      All models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.

      Contact us, we'll offer models you need.


4. Details:



     Delivery Time:

      10-15 working days for bulk cargo.

     Sample:

      Free, will be sent in 2 days.

     Warranty Time:

      3 years

     How to guarantee quality:

     10 years experience, 100% inspection before package.

     Loading Port:

      The nearest is Shanghai and the next one is Ningbo, China.

     MOQ:

      100pcs


5. Specification:

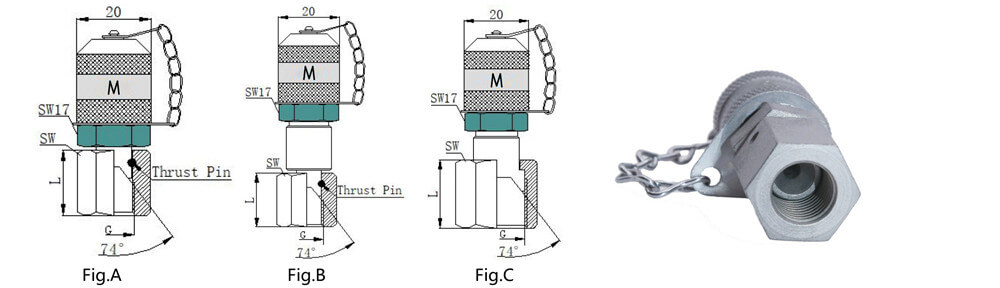

picture of hydraulic test point with JIC female 37°


picture of hydraulic test point with JIC male 37°

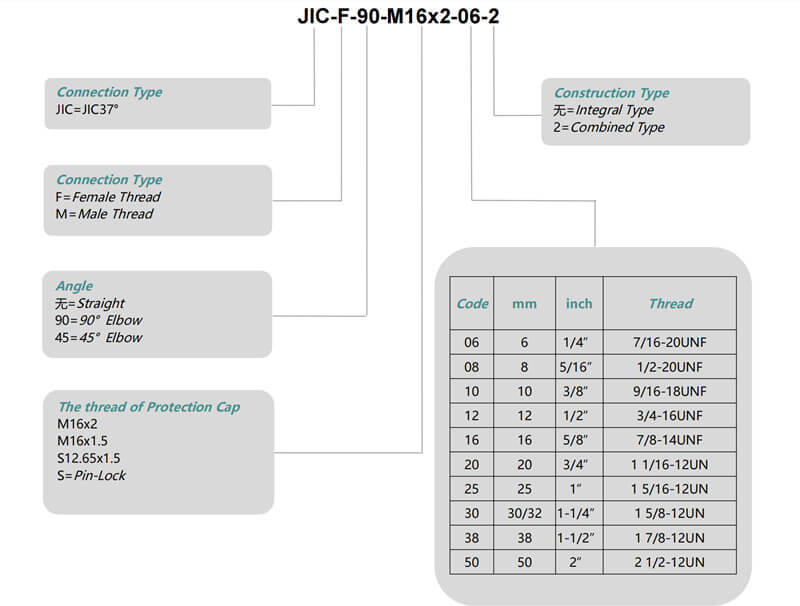

specification of hydraulic test point with 37°


Connection Type JIC=JIC37°
Connection Type F= Female Thread
M= Male Thread
Angle 无= Straight
90= 90° Elbow
45= 45° Elbow
the thread of Protection Cap M16x2
M16x1.5
S12.65x1.5
S=Pin-lock
Construction Type 无= Integral Type
2= Combined Type
Code mm inch Thread
06 06 1/4” 7/16-20UNF
08 08 5/16” 1/2-20UNF
10 10 3/8” 9/16-18UNF
12 12 1/2” 3/4-16UNF
16 16 5/8” 7/8-14UNF
20 20 3/4” 1 1/16-12UN
25 25 1” 1 5/16-12UN
30 30 1-1/4” 1 5/8-12UN
38 38 1-1/2” 1 7/8-12UN
50 50 2” 2 1/2-12UN



6. Workshop



factory of hydraulic test point


workshop of Mongor hydraulic test point
