DKO Pressure Gauge Adaptors

(1) All our models are universal in all hydraulic system.
(2)All models such as Minimess, Spradow, Parker, Stauff fittings etc, can be exchanged here.
(3) China factory, free leakage, 100% inspection before delivery.
(4) Free sample in 2 days.
(5) Low price and low MOQ 100pcs.
  • DKO Pressure Gauge Adaptors

  • Mongor Fluid

  • Stainless Steel or Carbon Steel

  • 630bar

  • (1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request

  • Zinc, Zinc Nickel(CrVI-free)

  • Neutral or customized

Availability:
Quantity:

Product Description

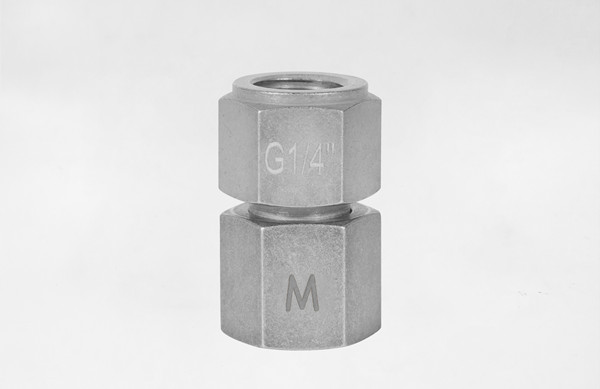

1. Pictures:



DKO pressure gauge adaptor manufacturer-Mongor fluid



2. Applications:


gauge+gauge connector+adaptors


Hydraulic pressure gauge adaptors enables quick and easy connection to pressure gauges and test hoses or test couplings.

Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.

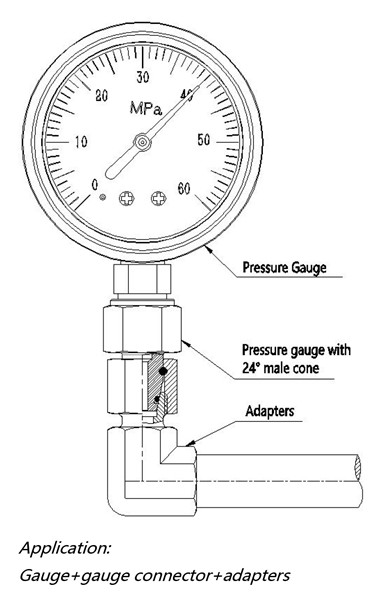

Below is the way of connection.


connection ways of dko pressure gauge adaptors


3. Scope of use:



      Our hydraulic pressure gauge adaptor is universal for all hydraulic measuring system.

      All models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.

      Contact us, we'll offer models you need.



4. Details:



     Delivery Time:

      10-15 working days for bulk cargo.

     Sample:

      Free, will be sent in 2 days.

     Warranty Time:

      3 years

     How to guarantee quality:

     10 years experience, 100% inspection before package.

     Loading Port:

      The nearest is Shanghai and the next one is Ningbo, China.

     MOQ:

      100pcs

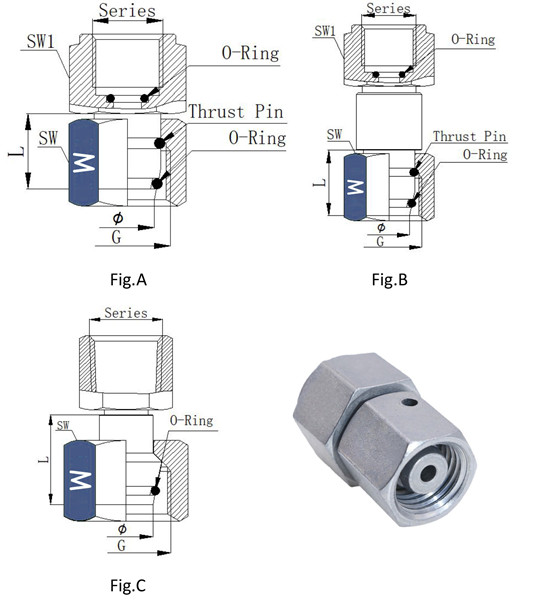

5. Specification:



specification of dko pressure gauge adaptor



Connection Type DKO 24°
24° Male Cone
Angle Straight
90= 90° Elbow
45= 45° Elbow
The thread of Pressure Gauge G1/4”
M14x1.5
G1/2”
M20x1.5
NPT1/4”
NPT1/2”
R1/4”
R1/2”
Light Series/Heavy Series Light Series
Heavy Series
Construction Type  Integral Type
 Combined Type
L series Tube(mm) S series Tube(mm)
6 6
8 8
10 10
12 12
15 14
18 16
22 20
28 25
35 30
42 38

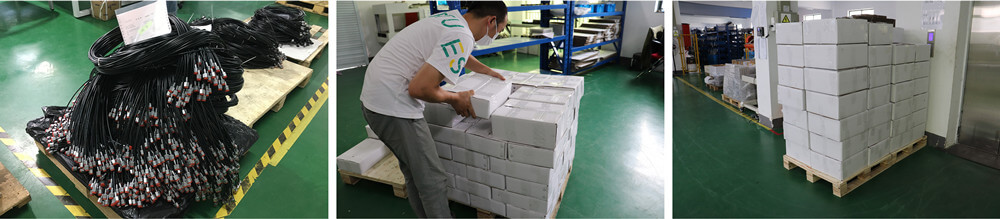

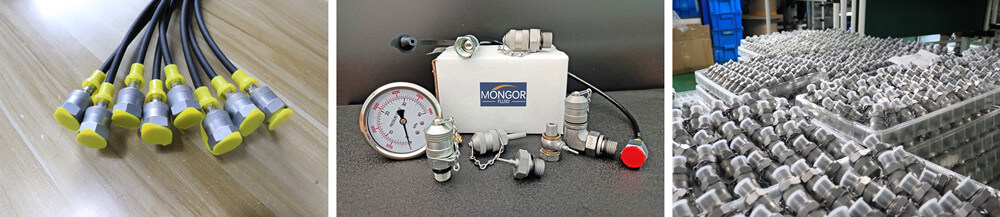

6. Workshop



factory of hydraulic test point


workshop of Mongor hydraulic test point
