Test Hose End Fittings with DKO Connection
Mongor Fluid
Stainless Steel or Carbon Steel
630bar
(1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request
Zinc, Zinc Nickel(CrVI-free)
Neutral or customized
| Quantity: | |
|---|---|
Product Description
Hydraulic test coupling enables quick and easy connection to pressure gauges or test hoses.
Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.
We can offer a complete range of mircrobore pressure test hoses & test points, please feel free to contact us.
If you are not able to find what you are looking for. leave a message.

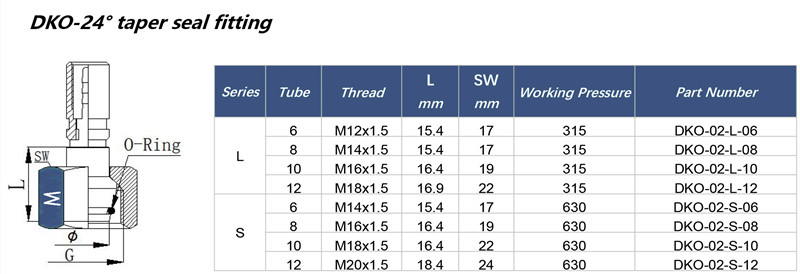

| Series | Tube | Thread | mm | mm | Working Pressure（bar） | Part Number |
| L | 6 | M12x1.5 | 15.4 | 17 | 315 | DKO-02-L-06 |
| 8 | M14x1.5 | 15.4 | 17 | 315 | DKO-02-L-08 | |
| 10 | M16x1.5 | 16.4 | 19 | 315 | DKO-02-L-10 | |
| 12 | M18x1.5 | 16.9 | 22 | 315 | DKO-02-L-12 | |
| S | 6 | M14x1.5 | 15.4 | 17 | 630 | DKO-02-S-06 |
| 8 | M16x1.5 | 16.4 | 19 | 630 | DKO-02-S-08 | |
| 10 | M18x1.5 | 16.4 | 22 | 630 | DKO-02-S-10 | |
| 12 | M20x1.5 | 18.4 | 24 | 630 | DKO-02-S-12 |
Contact us now, we will exchange it for you. Reply will be in 12 hours.
10-15 working days for bulk cargo.
Free, will be sent in 2 days.
3 years
10 years experience, 100% inspection before package.
The nearest is Shanghai and the next one is Ningbo, China.
100pcs
(1) We supply a range of microbore pressure test hoses, end fittings, Minimess couplings replacement, to enable pressure testing/monitoring of hydraulic systems.
(2) We have been specialized in this industry for over 10 years, based in China.
(3) Compared to Minimess, our test hose and couplings offer high cost performance. Factory price, leakage free, low MOQ 100pcs.
（4) All test point hose models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.
Contact us, we'll offer models you need.
