Pressure Gauge Adaptors with Bulkhead

(1) All our models are universal in all hydraulic system.
(2)All models such as Minimess, Spradow, Parker, Stauff fittings etc, can be exchanged here.
(3) China factory, free leakage, 100% inspection before delivery.
(4) Free sample in 2 days.
(5) Low price and low MOQ 100pcs.
  • Pressure gauge adaptors with bulkhead connection
  • Mongor Fluid
  • 630bar
  • Stainless Steel or Carbon Steel
  • Zinc, Zinc Nickel(CrVI-free)
  • (1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request
  • (1) Round Cap, steel (2) Hexagonal Cap, steel (3)Univeral Cap, steel (4)Plastic Cap, Yellow
  • Neutral or customized
Availability:
Quantity:

1. Pictures:

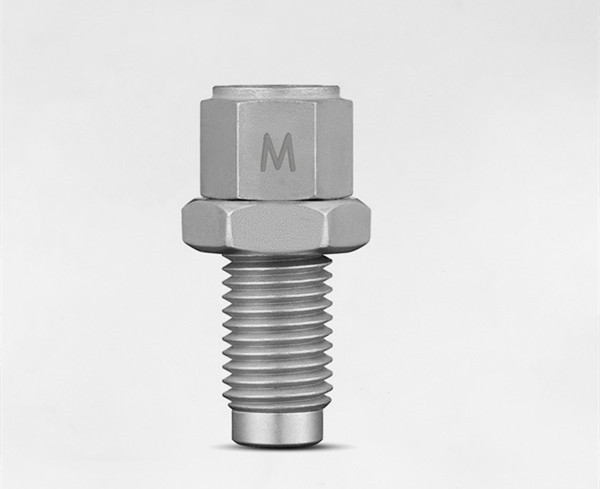

pressure gauge adaptor with bulkhead connection supplier

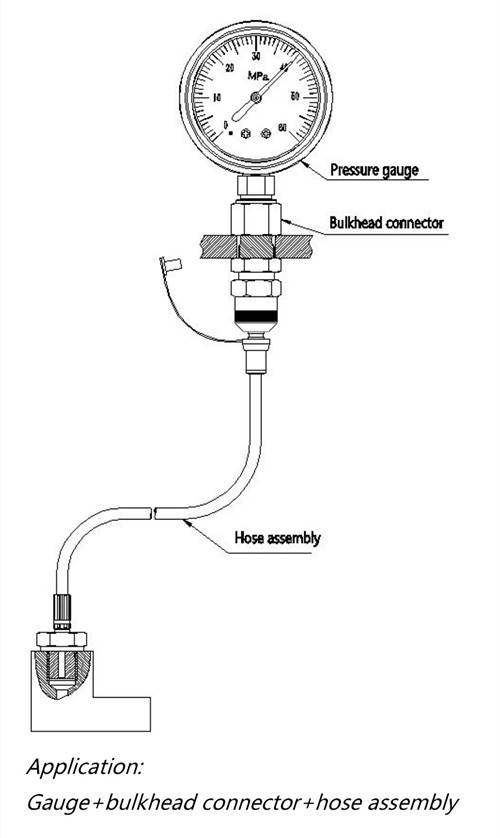

connection ways with test hose

2. Applications:


gauge+bulkhead connector+hose assembly


Hydraulic pressure gauge adaptors enables quick and easy connection to pressure gauges and test hoses or test couplings.

Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.

Below is the way of connection.




3. Scope of use:



      Our hydraulic pressure gauge adaptor is universal for all hydraulic measuring system.

      All models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.

      Contact us, we'll offer models you need.



4. Details:



     Delivery Time:

      10-15 working days for bulk cargo.

     Sample:

      Free, will be sent in 2 days.

     Warranty Time:

      3 years

     How to guarantee quality:

     10 years experience, 100% inspection before package.

     Loading Port:

      The nearest is Shanghai and the next one is Ningbo, China.

     MOQ:

      100pcs



5. Specification:

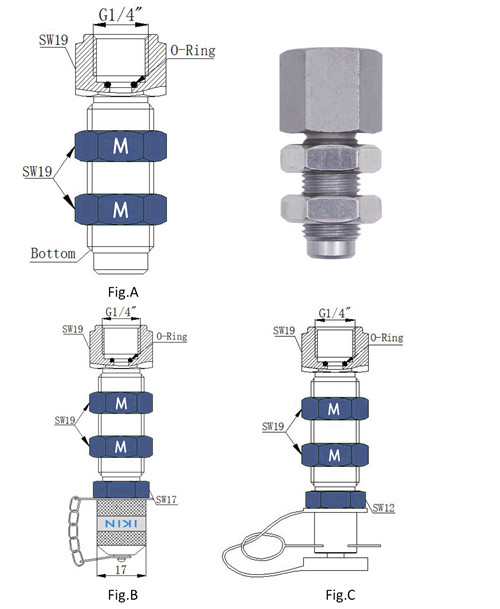

models of bulkhead gauge adaptors



Connection Type BH= Bulkhead


Angle Straight


90° Elbow


45° Elbow


Bottom Connection Type TH=Test Hose


CR=Cutting Ring


JIC=JIC connected


ORFS=ORFS connected


Construction Type Integral Type


Combined Type


The thread of Pressure Gauge G1/4”


M14x1.5


G1/2”


M20x1.5


NPT1/4”


NPT1/2”


R1/4”


R1/2”


Bottom Connection Type
TH CR models JIC ORFS
M16x2 L series S series 6 6
M16x1.5 6 6 8 8
S12.65x1.5 8 8 10 10
Pin-Lock 10 10 12 12

12 12 16 16

15 14 20 20

18 16 25 22

22 20 30 25

28 25 38 30

35 30 50 38

42 38




6. Workshop



factory of hydraulic test point


workshop of Mongor hydraulic test point
