Test Hose End Fittings with Stud Connection

Hydraulic test hose end fittings, microbore hoses that come in the standard lengths of DN2 and DN4.
End fittings can be divided into connection with pressure gauge, test coupling, male thread, banjo fittings, tube fittings, stud connection etc.
  • Wide range of end fittings for your choice
  • Fittings made of free cutting steel 1.0718
  • Aviliable for Minimess 1620, 1615, 1215 and plug-in series
  • Suitable for all hydraulic system and other hydraulic equipment
  • Microbore hoses offer excellent flexibility with high working pressure ratings
  • Large selection of hose materials and fittings will fit almost any configuration
  • All models such as Minimess, Spradow, Stauff etc. can be exchanged here. Factory price, MOQ 100pcs, 100% test before delivery. Contact us now!
  • Free sample in 2 days.
  • Test Hose End Fittings with Stud Connection

  • Mongor Fluid

  • Stainless Steel or Carbon Steel

  • 630bar

  • (1) NBR (2) FKM (3) EPDM (4) Low temperature request: -50℃ on request

  • Zinc, Zinc Nickel(CrVI-free)

  • Neutral or customized


Product Description

1. Pictures:

hydraulic test hose with end fittings supplier

2. Applications:


      Hydraulic test coupling enables quick and easy connection to pressure gauges or test hoses.

      Applied for the monitoring and control of pressure as well as the ventilation in hydraulic system.

      We can offer a complete range of mircrobore pressure test hoses & test points, please feel free to contact us.

      If you are not able to find what you are looking for. leave a message.

application of Mongor hyraulic test point 1

application of Mongor hyraulic test point 2

3. Specification:

    hydraulic test hose manufacturer-Mongor Fluid

 test hose specification-Mongor Fluid

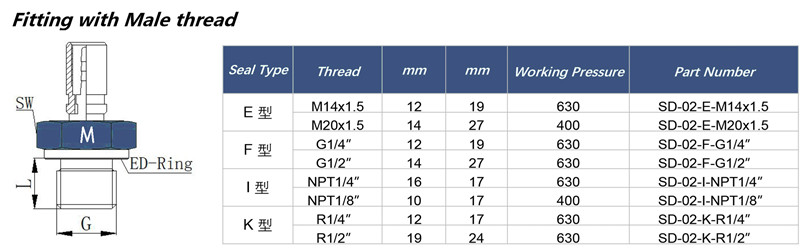

specification of test hose end fittings wiht stud connection

Seal Type Thread mm mm Working Pressure(bar) Part Number
E型 M14x1.5 12 19 630 SD-02-E-M14x1.5

M20x1.5 14 27 400 SD-02-E-M20x1.5
F型 G1/4” 12 19 630 SD-02-F-G1/4”

G1/2” 14 27 630 SD-02-F-G1/2”
I型 NPT1/4” 16 17 630 SD-02-I-NPT1/4”

NPT1/8” 10 17 400 SD-02-I-NPT1/8”
K型 R1/4” 12 17 630 SD-02-K-R1/4”

R1/2” 19 24 630 SD-02-K-R1/2”

4. Details:


     How to exchange Minimess hose models:

      Contact us now, we will exchange it for you. Reply will be in 12 hours.

     Delivery Time:

      10-15 working days for bulk cargo.


      Free, will be sent in 2 days.

     Warranty Time:

      3 years

     How to guarantee quality:

     10 years experience, 100% inspection before package.

     Loading Port:

      The nearest is Shanghai and the next one is Ningbo, China.



5. Introduction:


       (1) We supply a range of microbore pressure test hoses, end fittings, Minimess couplings replacement, to enable pressure testing/monitoring of hydraulic systems.


       (2) We have been specialized in this industry for over 10 years, based in China.

       (3) Compared to Minimess, our test hose and couplings offer high cost performance. Factory price, leakage free, low MOQ 100pcs.


     (4) All test point hose models such as Minimess, Spradow, Stauff, Parker etc, can be exchanged here.

            Contact us, we'll offer models you need.
